Detailing Coaches
Gangways on Corridor Coaches

Adding just a small amount of detail to coaches can make such a difference to their appearance whilst being a relatively straightforward exercise and not too onerous!

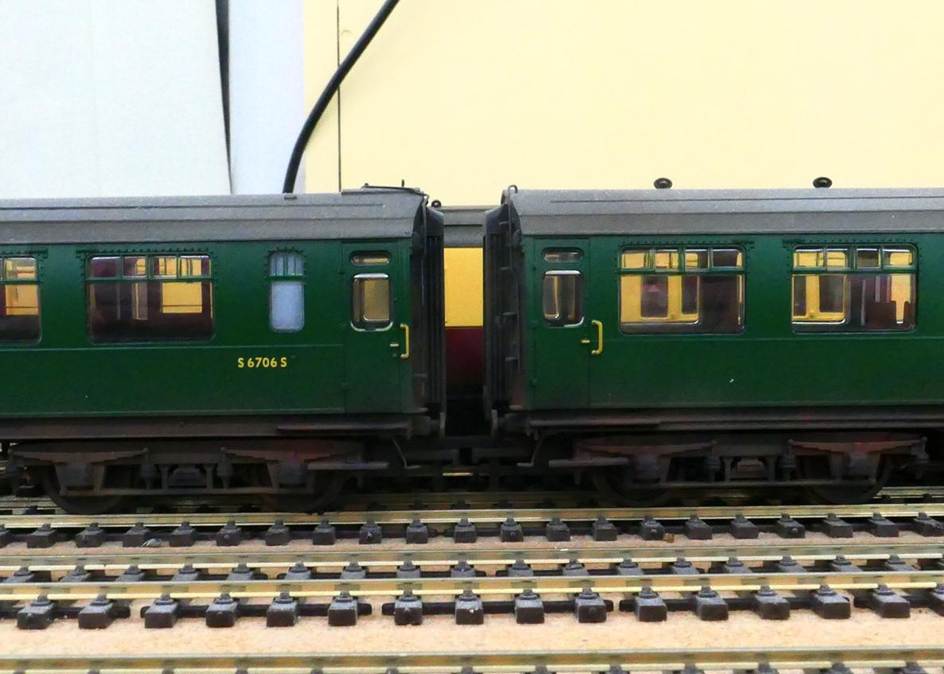

The highly visible air-gap between corridor coaches never looks right particularly if close-coupling is not or cannot be employed.

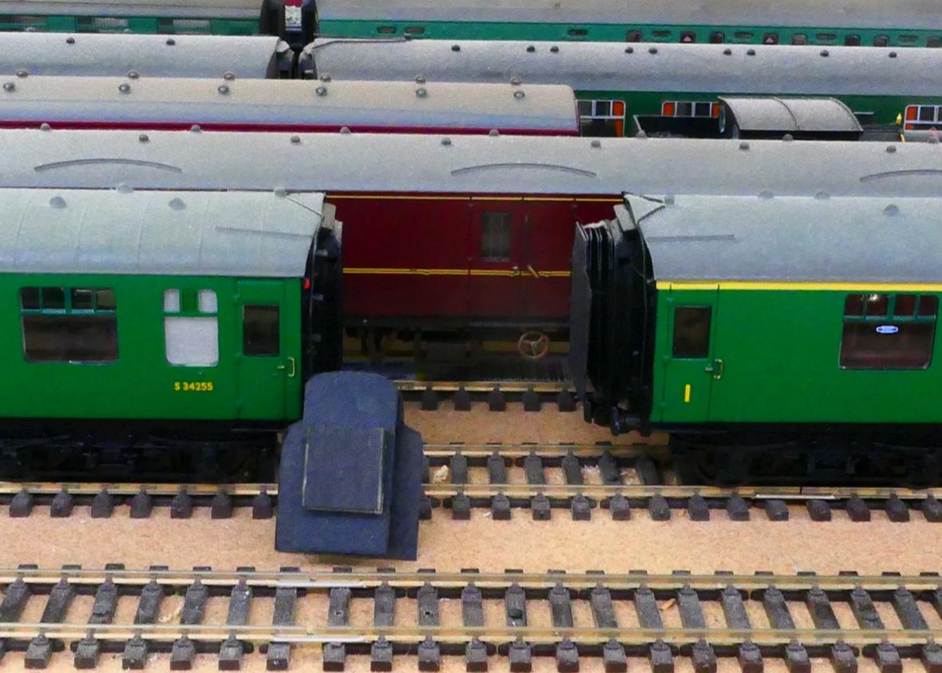

Modeller’s Mecca produced pairs press-fit card concertina corridor connector which also look the part as they come full-height of the end-gangway and coaches are easily separated.

However, with close-couplings there is only space for one concertina which can catch on the adjacent coach leading to derailments. Modeller’s Mecca chose not to respond to the possibility of providing end plates to resolve this leading to their gradual replacement.

Decades ago we used to make these by hand!

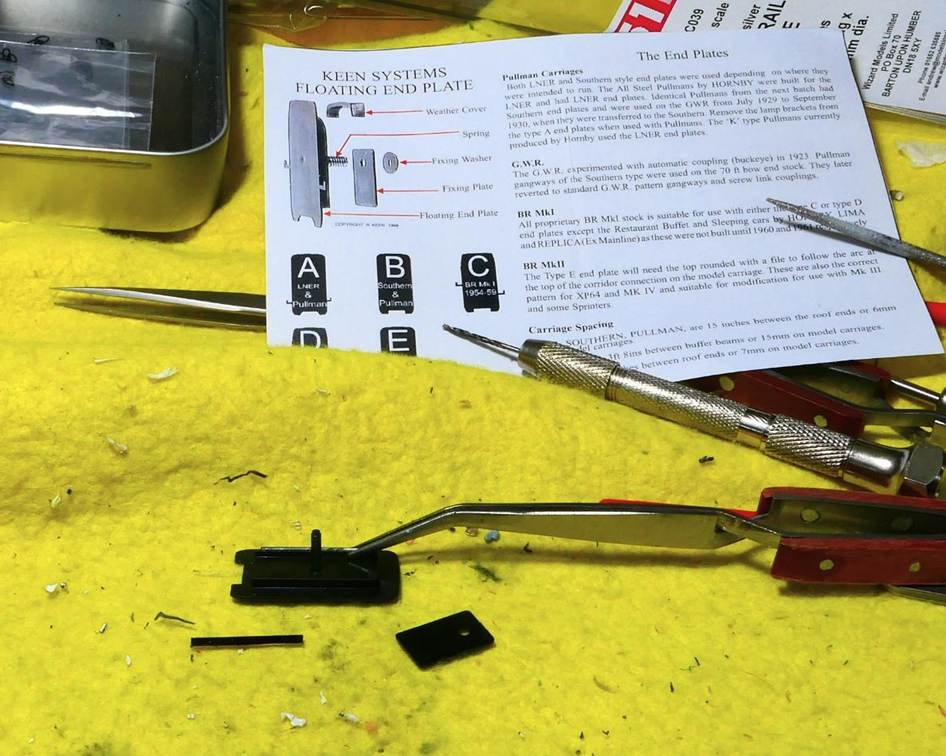

Keen Systems produce a system using spring floating end plates which does work really well; particularly when great care is taken to fit them.

The plastic end plate has a spigot thereon which supports a coil spring before passing through the carriage end. The end plate has a degree of free play and plastic shims are added to reduce this free play.

While the shims can be inserted into the gangway opening, it is easier to fit then to the floating end plates.

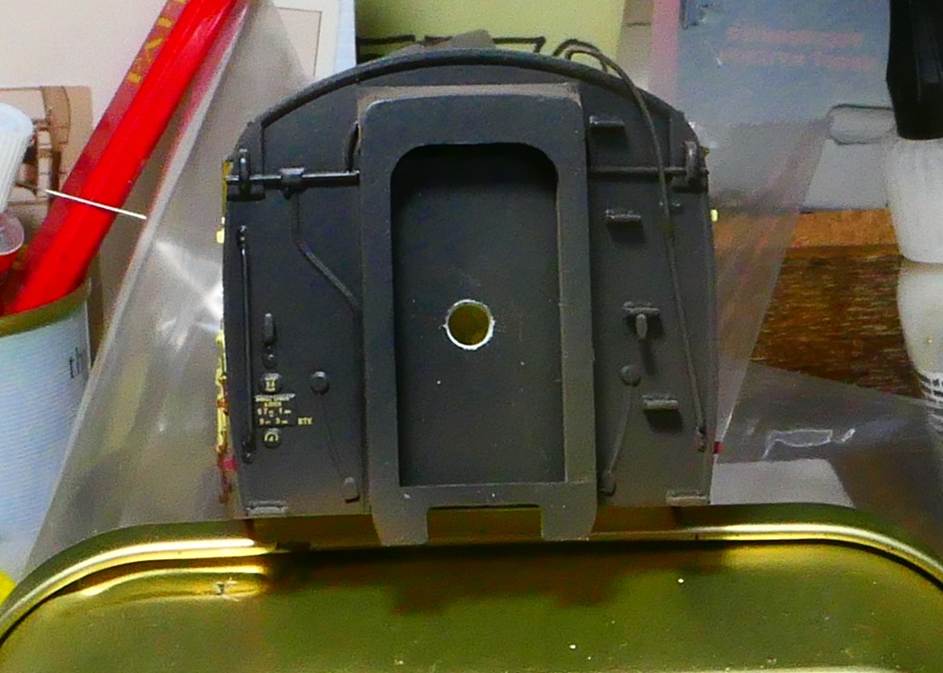

The carriage end needs a hole drilled therein through which the spigot is inserted; a plastic ring in the vestibule holds the floating end plate in place while providing a degree of adjustment on the spring pressure.

Even though the hole is drilled centrally it needs to be larger than the spigot to provide the floating end plate with sufficient free play.

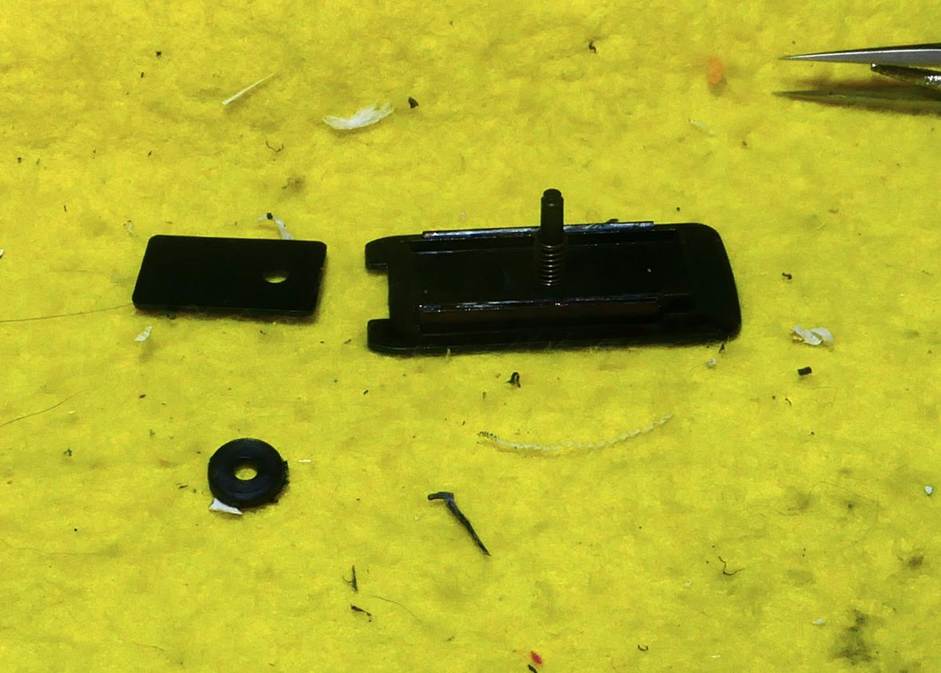

Close-up of the floating end plate with plasticard shims added and the spring placed on the spigot. Above the circular plastic ring (a tight fit in the spigot) and to the left of the floating end plate is a spacer.

Doubling as a drilling guide, the spacer both increases the pressure of the coil spring and prevents the coil spring from getting trapped in the drilled hole (particularly if that hole was enlarged to improve free play).

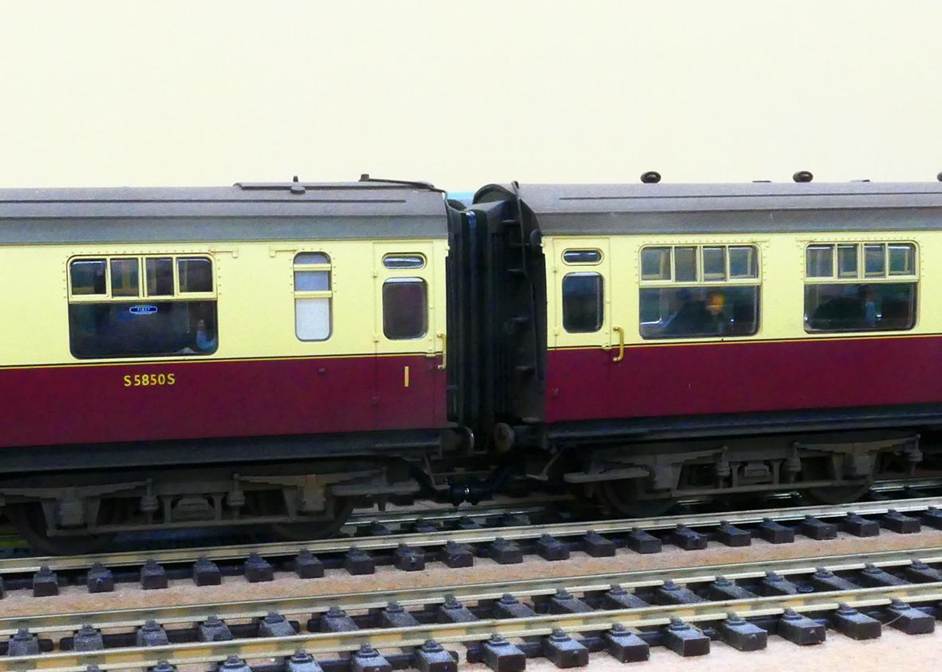

Coaches are now coupled using 17mm Hornby magnetic couplings and with the floating end plates filling the airgap.
